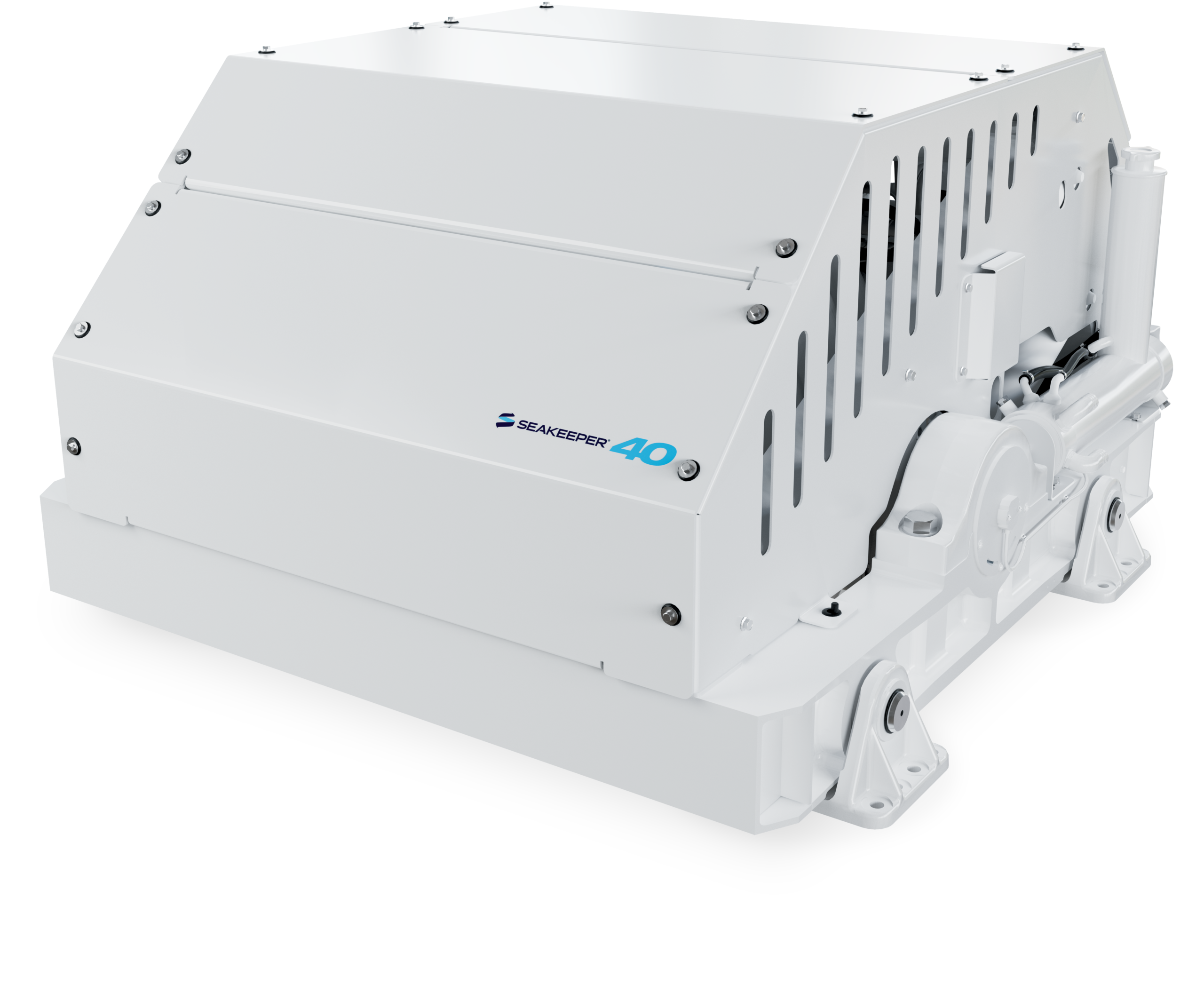

Key Specifications:

• Power Source: Operates exclusively on AC power
• Unit Weight: 4,074 lbs (1,848 kg)
• Dimensions: 54″ L x 55″ W x 40″ H
• Warranty: 2 years or 2,000 hours (whichever comes first) with an optional extended warranty

Performance:

• Maximum Rated Speed: 5,150 RPM
• Angular Momentum (Max RPM): 40,000 N·m·s
• Anti-Rolling Torque (Max RPM): 104,720 N·m
• Spool-Up Time to Max RPM: 70 minutes
• Time to Stabilization (4,378 RPM): 49 minutes

Power Consumption:

• Operating Power: 1,900 – 4,400 Watts (depending on sea state)
• Spool-Up Power: Up to 5,000 Watts
